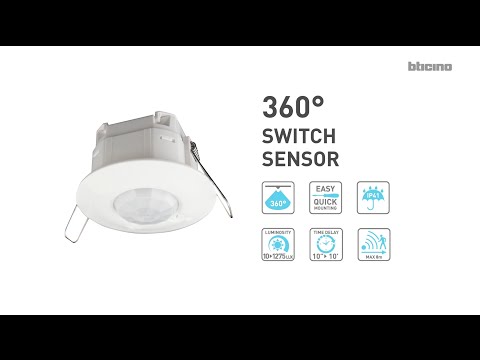

Product Details:
Brand | Legrand |
Range | 8 m |
Application | Corridor,stairways,restrooms etc. |
Mounting Type | Ceiling Mounted |
Product Details:
Brand | Honeywell |
Detection Method | Passive IR |
Detection Motion Speed | 1-5 ft per sec |
Range | Up to 40 ft diameter range, Up to 12 ft height range |
Detection Zone | 62 zones |
Battery | 1XCR123A Li-ion |
Battery Life | Up to 7 year |
The wireless ceiling mount motion sensor comes with a built-in transmitter for Honeywell wireless systems. This Optex sensor has a tough and rugged spherical lens that provides 360° detection. It’s sleek and compact design works with all types of applications. False alarm technologies such as RFI Protection, Noise Reduction Circuit, computerized S.M.D., Temperature Compensations and Selectable Pulse Count for Sensitivity Adjustment all come as standard with this motion sensor, giving it a high level of reliability.
Cost efficient, it is excellent for use in retail settings, businesses, schools, hospitals, industrial and residential areas. It’s meant for ceiling mounting and is battery powered. Battery life can last anywhere from 3 to 7 years depending on frequency of use. It also features a status LED that can be manually turned on and off.
Product Details:
Brand | Legrand |
Model | EBDSPIR-PRM |
Power Source | 220-240 V AC |
Application | Home Automation |
Working Temperature | -20 to +40 Deg C |
Relative Humidity | 5%-95 % RH |
IP Rating | IP40 |
Weight | 0.15 Kg |
Power Consumption | 895 mW |
Compliance | EMC-2014/30/EU,LVD-2014/35/EU |
Time Out Range | 10 sec to 99 min |
Body Material | Flame retardant ABS and PC/ABS |
Control Method | PRM Switching |
Cutout Diameter | 64 mm |
These compact PIR detectors provide automatic control for lighting, heating and ventilation loads. The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box. The low profile design means the unit can be mounted in a narrow ceiling void. No external control boxes are required as the unit is self-contained. The simple plug-in connections reduce installation time. The optional infrared remote handset allows the user to override the set up on some models.
Key Features:
Low profile design
Self-contained unit
Pluggable
Infrared programmable
5-year warranty included
Product Details:
Detecting Angle | 170 deg |
Mouting Type | Wall Mount |
Packing Type | Box |
Working Humidity | Less than 93% RH |
Owing to our in-depth knowledge in this domain, we are specialized in providing Wall Mount PIR Sensor.
